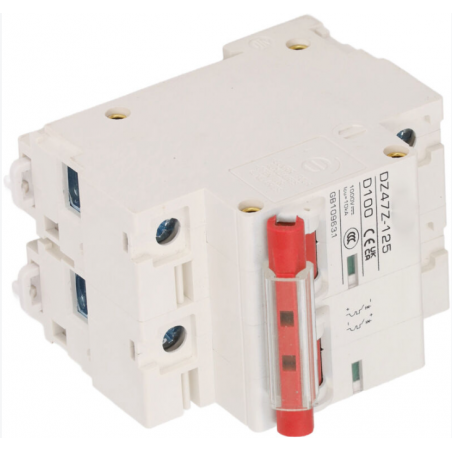

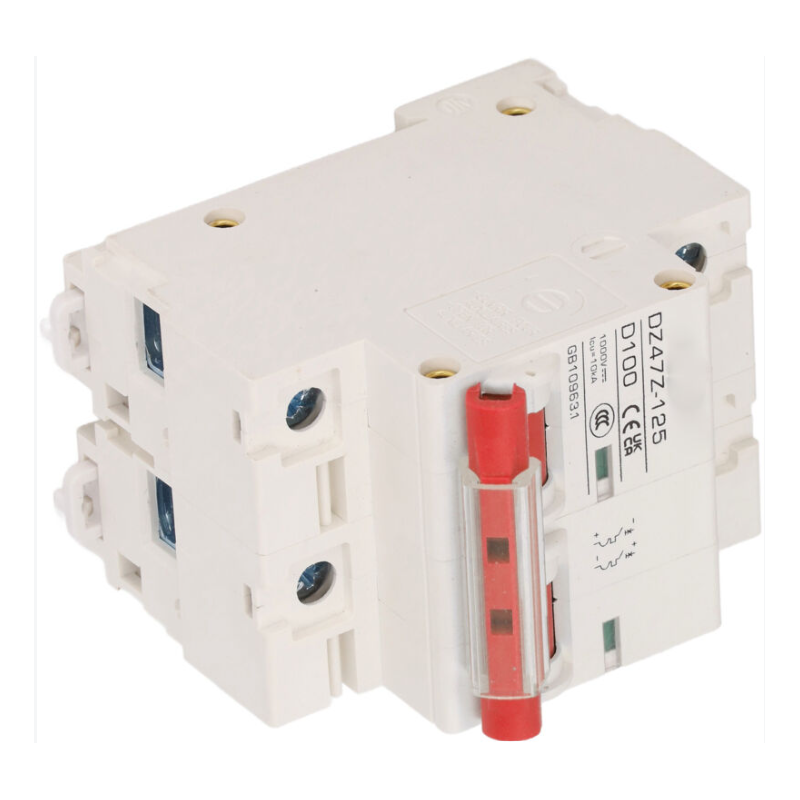

Eosnow DC Circuit Breaker 2P DZ47Z-125 100A – Miniature DIN Rail Circuit Breaker for Solar Photovoltaic Systems, 1000V, Red

Specifications

• Length: 10 cm

• Width: 8 cm

• Height: 60 mm

• Weight: 0.3 kg

• Rated current: 100 A

Description / Features

1. [Ensure Safety] These circuit breakers are used to protect low-voltage electrical systems from overcurrent caused by overloads or short circuits.

2. [Sensitive Response] The electromagnetic trip mechanism disconnects immediately in the event of a short circuit, ensuring circuit safety.

3. [10 kA Breaking Capacity] The ultimate short-circuit breaking capacity of these breakers is 10 kA, making them highly suitable for residential use.

4. [DIN Rail Installation] Modular design with screw terminals, installable on 35 mm DIN rails.

5. [PA66 Housing] Made from PA66 nylon, providing excellent flame-retardant safety performance.

Technical Specifications

• Item type: DC Circuit Breaker

• Material: PA66

• Rated current: 100 A

• Rated voltage: DC 1000 V

• Rated ultimate short-circuit breaking capacity (ICN industrial): 10 kA

• Applications: Solar photovoltaic systems, special electric motorcycles, special electric vehicles

• Mechanical life: 20,000 cycles

• Operating temperature: -35 ℃ to 70 ℃
